# Linear Models
## Classification

CS534 - Machine Learning

Yubin Park, PhD

---

For a binary classification task

i.e. `$ y \in \{0, 1\} $`

Is Squared Loss

a "good" loss function to use?

---

How about this?

$$ y \in \\{ \text{Pos}, \text{Neg}\\} $$

$$ y \in \\{ \text{True}, \text{False}\\} $$

---

Such classes may be generated from a coin toss

with a probability `$p$`.

For example,

$$ y = \begin{cases} 1, & \text{with probability } p \\\\ 0, & \text{with probability } (1-p) \end{cases} $$

Or,

$$ E[y] = p $$

---

Good news is that

`$ p $` is a real number,

so we may be able to model `$ p $` with `$ \mathbf{x}^T\mathbf{\beta} $`.

However, bad news is that `$ 0 \leq p \leq 1 $`.

Remember: `$ \mathbf{x}^T\mathbf{\beta} $` can be "any" real number.

---

Here is a trick!

$$ 0 \leq \frac{1}{1 + \exp(-\mathbf{x}^T\mathbf{\beta})} \leq 1 $$

This is called a [logistic function](https://en.wikipedia.org/wiki/Logistic_function).

So, I can estimate `$ p $` with

a logistic-transformed linear model.

And, this is called a [logistic regression](https://en.wikipedia.org/wiki/Logistic_regression).

---

The log-likelihood of a coin toss is:

$$ y\log(p) + (1-y)\log(1-p) $$

Extending this form with our logistic regression for `$n$` samples:

$$\mathcal{L}(\mathbf{y}, \hat{\mathbf{y}}) = - \sum_{i=1}^{n} y_i\log(\frac{1}{1 + \exp(-\mathbf{x}_i^T\mathbf{\beta})}) + (1-y_i)\log(\frac{\exp(-\mathbf{x}_i^T\mathbf{\beta})}{1 + \exp(-\mathbf{x}_i^T\mathbf{\beta})})$$

---

With some arithmetic,

$$ \mathcal{L}(\mathbf{y}, \hat{\mathbf{y}}) = - \sum_{i=1}^{n} y_i \mathbf{x}_i^T\mathbf{\beta} - \log(1+\exp(\mathbf{x}_i^T\mathbf{\beta}))$$

`$\hat{\mathbf{\beta}}$` that minimizes the above loss function is the solution of:

$$ \sum_{i=1}^{n} \mathbf{x}_i (y_i  - \frac{1}{1+\exp(-\mathbf{x}_i^T\mathbf{\beta})}) = 0$$

---

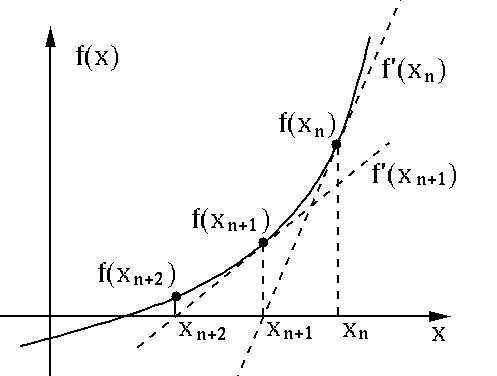

[Newton-Raphson algorithm](https://en.wikipedia.org/wiki/Newton%27s_method)

---

Let `$ \mathbf{p} = \frac{1}{1+\exp(-\mathbf{X}^T\mathbf{\beta}^\text{old})} $` and `$ \mathbf{W} = diag(\mathbf{p}(1-\mathbf{p})) $`

then

$$ \mathbf{\beta}^{\text{new}} = \mathbf{\beta}^{\text{old}} + (\mathbf{X}^T\mathbf{W}\mathbf{X})^{-1} \mathbf{X}^T (\mathbf{y} - \mathbf{p})$$

This algorithm is known as

[Iterative Reweighted Least Squares (IRLS)](https://en.wikipedia.org/wiki/Iteratively_reweighted_least_squares).

---

## IRLS (1)

```python
data = load_breast_cancer()
...

def loss(y, X, beta):
    ll = y * np.dot(X, beta) - np.log(1 + np.exp(np.dot(X, beta)))
    return -np.sum(ll)

beta = np.zeros(m+1)
loss_lst = []
loss_lst.append(loss(y, X, beta))
for i in range(30):
    p = expit(np.dot(X, beta))
    W = np.diag(p * (1-p))
    XWXinv = np.linalg.inv(np.dot(np.dot(X.T, W), X))
    beta = beta + np.dot(XWXinv, np.dot(X.T, y-p))
    loss_lst.append(loss(y, X, beta))
print(loss_lst)
```

```bash
[394.40074573860886, 134.65976155779023, 77.34464088185803, 50.213695232241705,
36.03778398459961, 27.9193029909705, 21.317288480218703, 17.693240538595294,
15.486294065947352, 13.69064323793789, 11.138891617659137, 8.972106451009168,
6.815535841033875, inf, inf, inf, inf, inf, inf, inf, inf, ...]
```

---

## IRLS (2)

The issues with `$\lim_{x \to 0}\log x$` and `$\lim_{x \to 0} \frac{1}{x}$`.

A heuristic fix:

```python
eps = 1e-5
beta = np.zeros(m+1)
loss_lst = []
loss_lst.append(loss(y, X, beta))
for i in range(30):
    p = np.clip(expit(np.dot(X, beta)), eps, 1-eps) # NOTE: np.clip()
    W = np.diag(p * (1-p))
    XWXinv = np.linalg.inv(np.dot(np.dot(X.T, W), X))
    beta = beta + np.dot(XWXinv, np.dot(X.T, y-p))
    loss_lst.append(loss(y, X, beta))
print(loss_lst)
```

```bash
[394.40074573860886, 134.65976155779023, 77.34464088185803, 50.213695232241705,
36.037792317633716, 27.921357429458112, 21.363127719004243, 17.7941874322518,
15.712620105268597, 14.313956463333824, 13.059598232213126, 12.127395626682928,
11.44752822203149, 10.928370872078371, 10.516914209497251, 10.18009512545763,
9.89655605214852, 9.652059524611392, 9.436848965755562, ...]
```

---

## Log-odds

For a binary classification problem,

$$ \log \frac{p_i}{1-p_i} = \mathbf{x}_i^T \mathbf{\beta}$$

The left-hand term is called the log-odds or [logit](https://en.wikipedia.org/wiki/Logit) function.

$$ \text{logit}(p) = \log \frac{p}{1-p} $$

$$ \text{logit}^{-1}(q) = \frac{1}{1 + \exp(-q)} $$

Logistic regression can be viewed as a linear model for the log-odds target.

---

## Coefficients

A central limit theorem and the least sqaure update form can be used to derive:

$$ \hat{\mathbf{\beta}} \sim N(\mathbf{\beta}, (\mathbf{X}^T\mathbf{W}\mathbf{X})^{-1})$$

In logistic regression, the regression coefficient represents the change in the log-odds.

$$ \exp(\beta_j) = \frac{\text{Pr}(y=1 | x_j=1)/\text{Pr}(y=0 | x_j=1)}{\text{Pr}(y=1 | x_j=0)/\text{Pr}(y=0 | x_j=0)}$$

This is called as [Odds-ratio (OR)](https://en.wikipedia.org/wiki/Odds_ratio). In other words,

$$ \exp(\beta_j) =  \frac{\text{Odds of }y=1\text{ with }x_j=1}{\text{Odds of }y=1\text{ with }x_j=0}$$

---

## Probabilistic Perspective

$$ y = \begin{cases} 1, & \text{if } \mathbf{x}\mathbf{\beta} + \epsilon > 0 \\\\ 0, & \text{otherwise}\end{cases} $$

$$ \text{Pr}(\epsilon > s) = \frac{1}{1 + \exp(-s)} $$

The noise is from the standard [logistic distribution](https://en.wikipedia.org/wiki/Logistic_distribution). To see how this works,

$$ \text{Pr}(\mathbf{x}\mathbf{\beta} + \epsilon >  0) = 1 - \text{Pr}(\epsilon < - \mathbf{x}\mathbf{\beta})$$

$$ \text{Pr}(y = 1) = \frac{1}{1 + \exp( - \mathbf{x}\mathbf{\beta})}$$

---

## Other Approaches for Binary Classification

$$ y = \begin{cases} 1, & \text{if } \mathbf{x}\mathbf{\beta} + \epsilon > 0 \\\\ 0, & \text{otherwise}\end{cases} $$

$$ \epsilon \sim N(0, 1) $$

This model is known as [Probit Regression](https://en.wikipedia.org/wiki/Probit_model).

If the cumulative distribution of the noise follows the standard [Gumbel distribution](https://en.wikipedia.org/wiki/Gumbel_distribution)

$$ \text{Pr}(\epsilon > s) = \exp(-\exp(-s))$$

then the model is known as the [complementary log-log regression](https://data.princeton.edu/wws509/notes/c3s7).

Note that a logistic regression is just **one way** to model a binary classification problem.

---

## Regularized Logistic Regression

Elastic-Net:

$$ \mathcal{L}(\mathbf{y}, \hat{\mathbf{y}}) = - \sum_{i=1}^{n} [y_i \mathbf{x}_i^T\mathbf{\beta} - \log(1+\exp(\mathbf{x}_i^T\mathbf{\beta}))] + \lambda ((1-\alpha) \mathbf{\beta}^T\mathbf{\beta} + \alpha | \mathbf{\beta} |)$$

Ridge:

$$ \mathcal{L}(\mathbf{y}, \hat{\mathbf{y}}) = - \sum_{i=1}^{n} [y_i \mathbf{x}_i^T\mathbf{\beta} - \log(1+\exp(\mathbf{x}_i^T\mathbf{\beta}))] + \lambda \mathbf{\beta}^T\mathbf{\beta} $$

Lasso:

$$ \mathcal{L}(\mathbf{y}, \hat{\mathbf{y}}) = - \sum_{i=1}^{n} [y_i \mathbf{x}_i^T\mathbf{\beta} - \log(1+\exp(\mathbf{x}_i^T\mathbf{\beta}))] + \lambda | \mathbf{\beta} | $$

---

## Taylor Approximation

Applying the quadratic [Taylor approximation](https://en.wikipedia.org/wiki/Taylor_series) to the logistic loss part,

$$ \mathcal{L}(\mathbf{y}, \hat{\mathbf{y}}) \approx \sum p_i (1-p_i)(\mathbf{x}_i^T\mathbf{\beta} - \frac{y_i - p_i}{p_i (1-p_i)} - \mathbf{x}_i^T \mathbf{\beta}^{\text{old}})^2 + \lambda |\mathbf{\beta}|$$

where `$ p_i = \frac{1}{1 + \exp(-\mathbf{x}_i^T\mathbf{\beta}^{\text{old}})}$`.

Let `$ z_i = \frac{y_i - p_i}{p_i (1-p_i)} + \mathbf{x}_i^T \mathbf{\beta}^{\text{old}} $` and `$ w_i = p_i (1-p_i) $`, then

$$ \sum w_i (z_i - \mathbf{x}_i^T \mathbf{\beta})^2 + \lambda | \mathbf{\beta }| $$

This form is the same as a weighted Lasso loss function, which you can solve with a [proximal gradient method](https://en.wikipedia.org/wiki/Proximal_gradient_methods_for_learning).

You can extend this result to the Elastic-Net penalty - note that you can modify the loss function of an Elastic-Net regression to be equivalent to a lasso regression.

---

## Generalized Linear Models

Multi-class and count targets

---

## Multi-class Target

Consider modeling `$ y \in \{ \text{Red}, \text{Green}, \text{Yellow}\} $`.

How about

$$ \text{Pr}(y = \text{Red}) = \frac{\exp(\mathbf{x}^T\mathbf{\beta}^{R})}{\exp(\mathbf{x}^T\mathbf{\beta}^{R}) + \exp(\mathbf{x}^T\mathbf{\beta}^{G})+ \exp(\mathbf{x}^T\mathbf{\beta}^{Y})}$$

The above probability distribution is known as a [softmax function](https://en.wikipedia.org/wiki/Softmax_function).

The log-likelihood of this model is:

$$   \sum\_{i=1}^{n} \sum_{k=\\{R, G, Y\\}} I(y_i = k) \mathbf{x}_i^T\mathbf{\beta}^k - \log(1+\exp(\mathbf{x}_i^T\mathbf{\beta}^k)) $$

---

## Count Target

Consider modeling `$ y \in \{ 0, 1, 2, 3, ...\} $`.

How about

$$ \text{Pr}(y = k) = \frac{1}{k!} \exp(k \mathbf{x}^T\mathbf{\beta}) \exp(-\exp(\mathbf{x}^T\mathbf{\beta}))$$

If we let `$\lambda = \exp(\mathbf{x}\mathbf{\beta})$`, then

$$ \text{Pr}(y = k) = \frac{1}{k!} \lambda^k \exp(-\lambda) $$

This distribution is known as [Poisson distribution](https://en.wikipedia.org/wiki/Poisson_distribution). The log-likelihood of this model is:

$$ \sum\_{i=1}^{n} y_i \mathbf{x}_i^T\mathbf{\beta} - \exp(\mathbf{x}_i^T\mathbf{\beta})$$

---

## Generalized Linear Model

$$ E[y] = \mu = g^{-1}(\mathbf{x}^T\mathbf{\beta})$$

where `$g(\cdot)$` is a link function.

.pure-table.pure-table-bordered.pure-table-striped[
| Distribution | Use Case | Link | Mean Function |
| ------------ | -------- | ---- | ------------- |
| Normal       | Linear Response | `$\mathbf{X}\mathbf{\beta}=\mu$` | `$\mu=\mathbf{X}\mathbf{\beta}$`|
| Poisson | Count Response | `$\mathbf{X}\mathbf{\beta}=\log(\mu)$` | `$\mu=\exp(\mathbf{X}\mathbf{\beta})$`|
| Categorical | K Response | `$\mathbf{X}\mathbf{\beta}=\log(\frac{\mu}{1-\mu})$` | `$\mu=\frac{1}{1+\exp(-\mathbf{X}\mathbf{\beta})}$`|
]

The maximum likelihood estimator for `$\mathbf{\beta}$` can be found using IRLS or Coordinate Descent.

Please read "[GLMNET Vignette](https://web.stanford.edu/~hastie/glmnet/glmnet_beta.html)" for more details.

---
